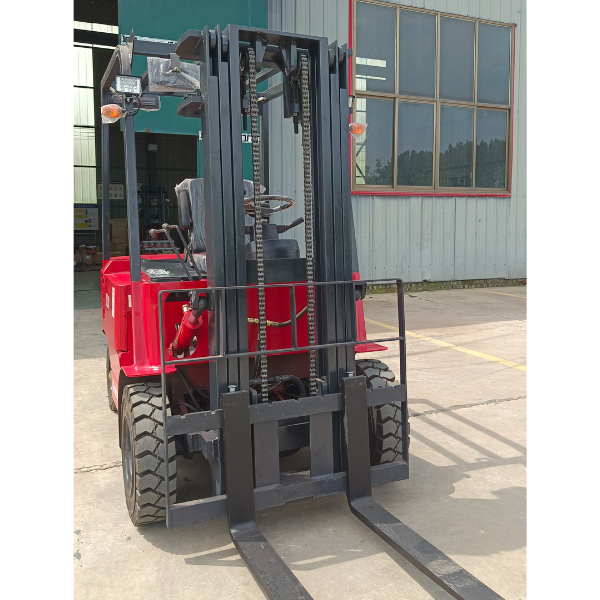

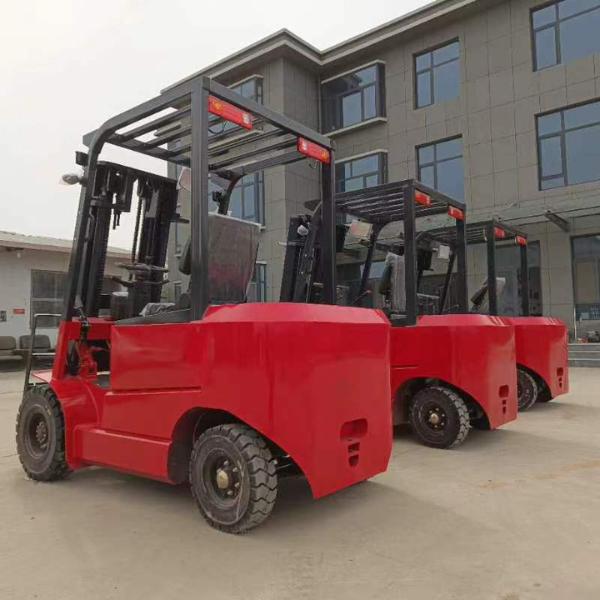

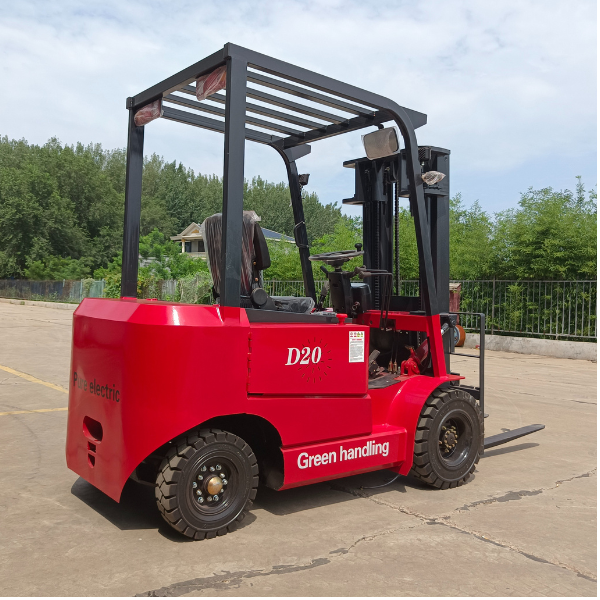

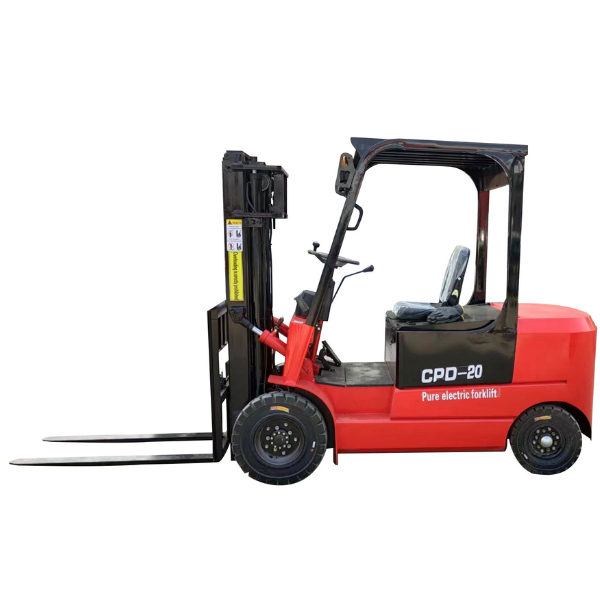

AZ-ZZ01 Jichuan CPD20 Electrical Forklift Serial #: JCCPD20240427

• Model: CPD 20
• Power: Storage battery
• Loading capacity: 2000kg
• Load capacity: 500 mm
• Lifting height: 4000 mm
• Free lifting height: 150 mm
• Fork length: 1220 mm
• Door frame dip angle (front/rear): 6/12
• Min. outside turning radius: 2300 mm
• Minimum right channel: 2500 mm
• Min. height off the ground: 90 mm
• Overall length: 2550 mm
• Overall width: 1200 mm
• Overall height: 2100 mm (three stage)
• Net weight: 3200kg
• Battery: 12v 140 ah (10 pcs)
• Walking motor: 7.5 kw AC
• Oil pump motor: 5 kw AC
